Fruit box molding machine

JZH-1200多功能水果盒成型机

用途：该机器除了制作传统的天地盖盒外，还可以制作其它垛码箱，以及无胶粘机折箱等包装纸盒的生产加工，适用于食品包装盒、水果、蔬菜包装盒等需要包装的产品盒类的加工制作。

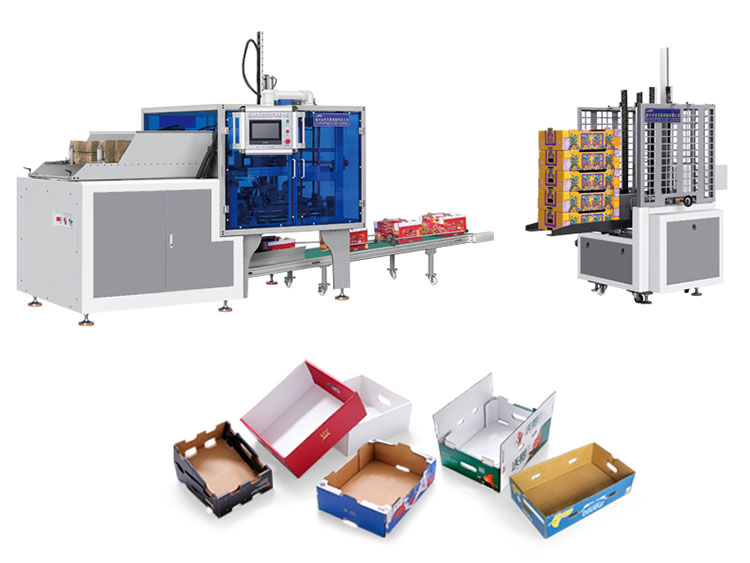

JZH-1200 multifunctional fruit box molding machine

Usage: This machine can not only produce traditional Tiandi cover boxes, but also produce other stacked boxes, as well as packaging paper boxes such as non adhesive folding boxes. It is suitable for the processing and production of food packaging boxes, fruit, vegetable packaging boxes, and other product boxes that require packaging.

性能特点：

1、进口智能喷胶系统，实现自动喷胶补偿功能

2、成型增加折翻刀功能，可以做多种盒型

3、吸风底抽式纸板自动进料，连贯作业进纸、成型、输送、堆垛动作一次性完成

4、采用运动控制器、光电跟踪系统、气源检测运行系统、触摸屏人机界面，实施纸盒成型全过程自动化

5、光纤定位折边涂胶，降低涂胶误差，伺服推送纸板前后涂胶，减少光电眼照射纸板之误差，涂胶更准确

6、红外安全保护系统，确保人员操作安全

7、自动故障诊断功能

8、快速换模调节装置

9、机架笼式设计，整体加工，分组式结合

10、整机占地面积小，稳定性佳。

Performance characteristics:

1. Imported intelligent glue spraying system, realizing automatic glue spraying compensation function

2. The folding knife function is added to the molding, and various box types can be made

3. Automatic feeding of suction bottom suction paperboard, continuous operation, feeding, molding, conveying, stacking actions completed at one time

4. Adopt motion controller, photoelectric tracking system, air source detection operation system, and touch screen human-machine interface to automate the entire process of carton molding

5. Optical fiber positioning, folding and gluing, reducing gluing error, servo pushing paperboard before and after gluing, reducing the error of photoelectric eye irradiation on paperboard, making gluing more accurate

6. Infrared safety protection system to ensure the safety of personnel operation

7. Automatic fault diagnosis function

8. Quick mold change adjustment device

9. Rack cage design, overall processing, grouping combination

10. The entire machine occupies a small area and has good stability.

    JZH-1200多功能水果盒成型机
JZH-1200 multifunctional fruit box molding machine
